Injection molding is a cornerstone of plastic part production, and the mold used is a critical factor in determining both the quality and efficiency of the process. This article provides an overview of the various injection mold types, highlighting their distinct characteristics and applications.

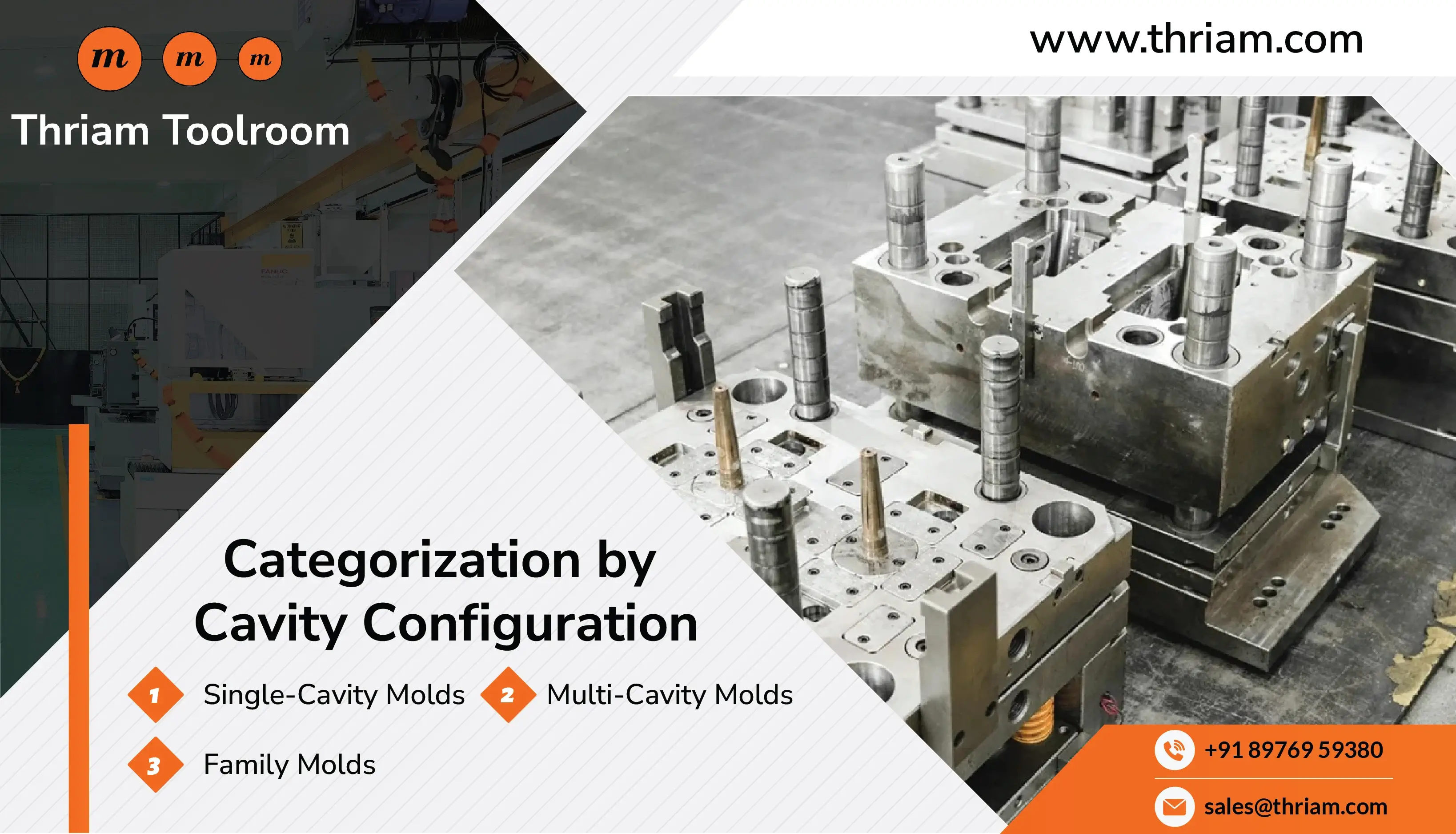

1. Categorization by Cavity Configuration:

  • Single-Cavity Molds: These molds produce one part per molding cycle. They are well-suited for smaller production runs, prototyping, or manufacturing intricate parts where high precision is paramount.
  • Multi-Cavity Molds: Featuring multiple cavities, these molds enable the simultaneous production of several identical parts. They are ideal for large-scale production, reducing per-unit costs and enhancing overall efficiency.
  • Family Molds:These specialized molds create a set of disparate but related parts designed for assembly into a single product within a single cycle. This approach is beneficial for producing kits or products composed of multiple components, streamlining the manufacturing workflow.

2. Classification Based on Runner System Design:

  • Cold Runner Systems (Molds):In this configuration, molten plastic is channeled through pathways (runners) that cool alongside the molded part. The solidified plastic within these runners is ejected as waste, which can often be recycled and reused. While simpler and more economical, cold runner systems generate material waste.
  • Hot Runner Systems (Molds):These systems maintain the runners at a controlled temperature, ensuring the plastic remains in a molten state. This eliminates waste from solidified runners, reduces cycle times, and often leads to improved part quality. Although more complex and carrying a higher initial investment, hot runner systems offer significant advantages for high-volume production and the creation of complex geometries.

3. Additional Mold Variations:

  • Stack Molds:Employing multiple parting lines, stack molds effectively layer multiple mold faces, significantly increasing production output within the constraints of a given molding machine's size.
  • Insert Molds:These molds integrate pre-manufactured components (inserts) into the plastic part during the molding process. They are commonly used to incorporate features like metal threads, electrical contacts, or other elements into plastic parts.
  • Unscrewing Molds:Designed specifically for producing parts with external or internal threads, these molds utilize a mechanism that precisely unscrews the mold from the finished part after the molding stage.

4. Key Considerations for Mold Selection:

  • Production Volume Requirements:High-volume projects typically benefit from multi-cavity or stack molds, whereas smaller production runs may be more economically served by single-cavity molds
  • Part Geometric ComplexityIntricate part designs often necessitate specialized molds, such as hot runner or insert molds, to achieve the desired results.
  • Budgetary Constraints:Cold runner molds generally represent a lower initial investment compared to hot runner systems.
  • Material Properties:The specific type of plastic material used will influence mold design considerations and the selection of appropriate mold materials.

Conclusion

Choosing the correct injection mold is essential for achieving efficient, cost-effective, and high-quality plastic part production. A thorough understanding of the various mold types and their associated strengths and weaknesses empowers manufacturers to make informed decisions that optimize their manufacturing operations.
